Vibrating Screens
Dynamec Vibrating Screens are engineered for precision screening and grading of aggregates, sand, and minerals. With advanced vibration technology, they ensure efficient separation of materials into different size fractions, delivering uniform quality for construction and industrial applications.
Download BrochureOverview
Vibrating screens use vibration motors or exciters to stratify and separate feed material over multiple decks fitted with wire mesh or polyurethane panels. They are ideal for screening crushed stone, sand, gravel, and industrial minerals.
Advantages
- High screening efficiency and capacity
- Multiple deck configurations available
- Heavy-duty design for continuous duty
- Low maintenance with modular screen panels
- Customizable vibration frequency and amplitude
- Dust sealing arrangement for clean operation
Applications
Used in mining, quarrying, aggregate production, sand plants, and recycling operations for grading and scalping applications.

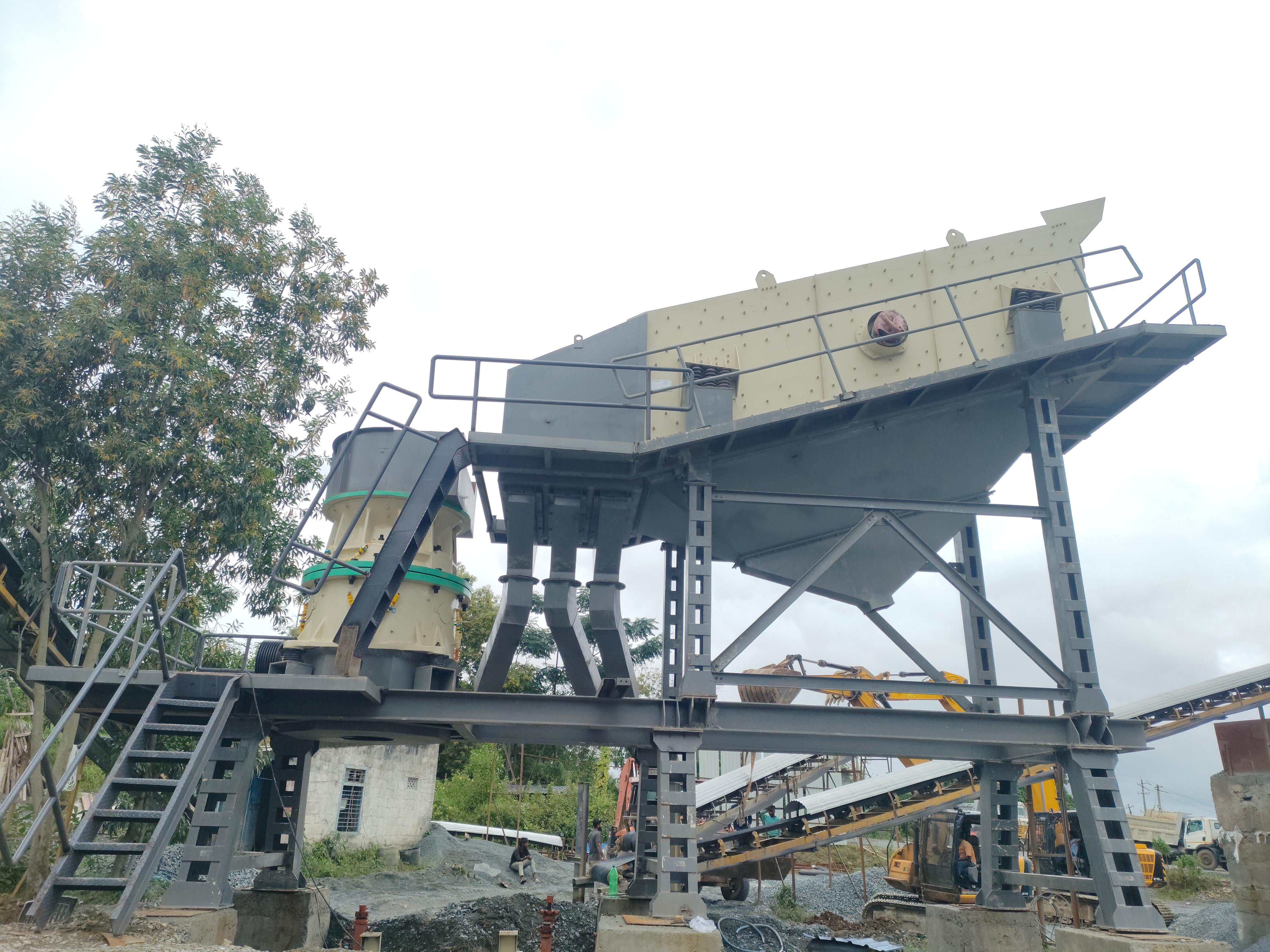

Image for illustration only – actual design may vary.
Technical Data Sheet — Representative Models
| Model | Screen Size (mm) | No. of Decks | Capacity (tph) | Motor Power (kw) | Weight Approx (kg) |
|---|---|---|---|---|---|
| AEI-VS100 | 4500 × 1500 | 2 , 3 , 4 | 60 – 100 | 15 | 15,200 |
| AEI-VS150 | 5000 × 1800 | 2 , 3 , 4 | 120 – 180 | 15 – 18.5 | 17,600 |
| AEI-VS200 | 5000 × 2000 | 2 , 3 , 4 | 200 – 250 | 18.5 | 18,400 |
| AEI-VS300 | 6000 × 2000 | 2 , 3 , 4 | 250 – 300 | 22 | 19,400 |
| AEI-VS350 | 6000 × 2400 | 2 , 3 , 4 | 300 – 350 | 30 | 20,400 |
